The Megan Blue Front Tension Rod + Rear Lower Sub Frame Support Bar For 97-01 Infiniti Q45 Y33/89-98 Nissan 240SX S13 S14 is in stock at PartSmith Co. and ready for dispatch from our USA warehouse.
Worn dampers and bushings change ride height, alignment angles and tire wear in ways that compound over time. Check for cupped tire wear, which points at damping problems no alignment will fix.
Shops order the megan blue front tension rod from us in volume because the data on the page is accurate.
If your build is unusual, tell us and we will confirm the megan blue front tension rod against it.
The megan blue front tension rod ships protected, because a damaged part helps nobody.
Drivers choose the megan blue front tension rod here for honest specification detail and quick dispatch.
Buyers comparing the megan blue front tension rod will find the specification detail on this page rather than in a catalog footnote.
The megan blue front tension rod listed here is checked against your vehicle before dispatch.
Every megan blue front tension rod order goes through the same fitment review.
Ordering the megan blue front tension rod takes a minute and the confirmation reaches you straight away.
At a glance
- Finish: Blue
- Position: Front
- Category: Suspension Arms
- Price: $203.42 with free shipping over $99
- Availability: in stock, dispatched from the USA
Manufacturer specifications

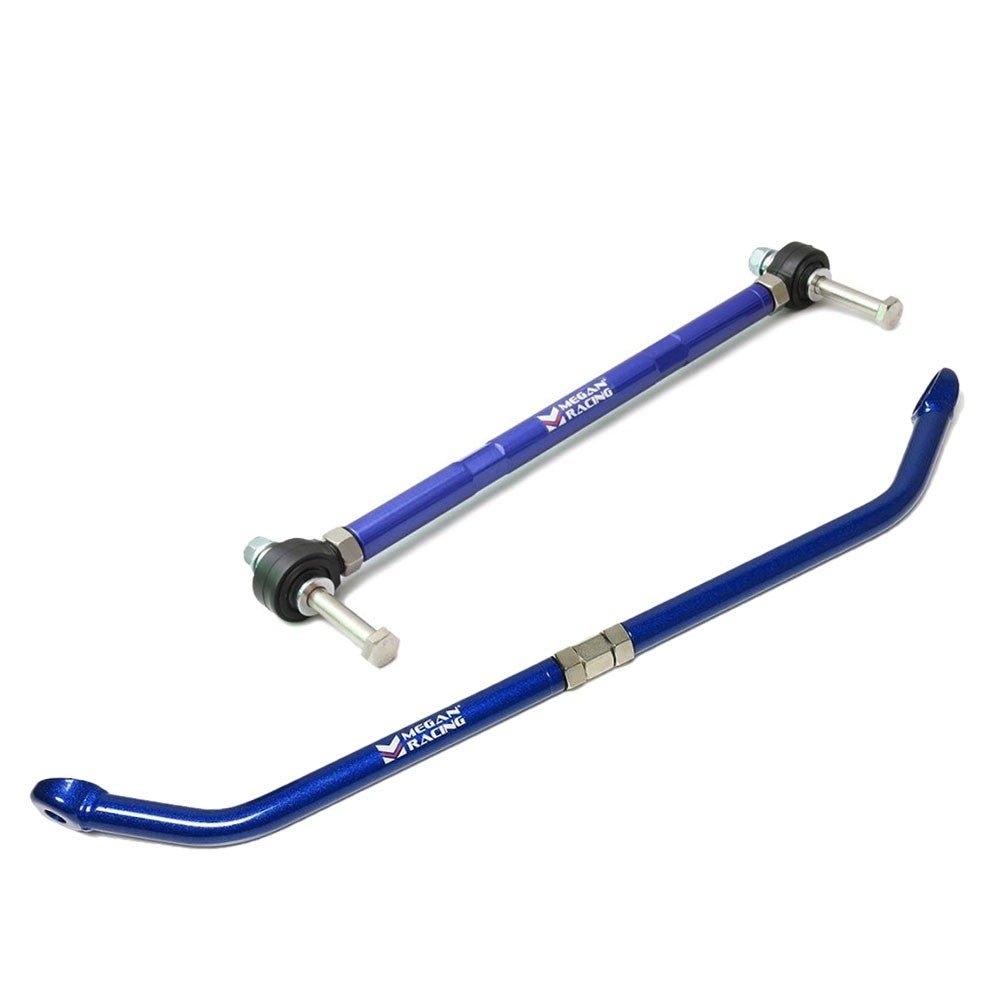

Tension Rod
This Tension-Rod brace is light weight and yet extremely strong. Designed to “box” in your front-chassis between the Tension-Rods, this bar is adjustable to tune pre-load and adjust the rigidity of the front end.
- Material: Steel Alloy
- Color: Blue
- Finish: Powdercoated
- Type: Control Arms
- Style: Tension Rod
- Placement: Front (Tension Rods)
- Connects between the front Tension-Rods, just under the sway bar
- Adjustable length to tune for Pre-Load after installation
- 3-Stage Powder coating process to achieve a brilliant Blue finish
- Completes the connection between the left and right suspension system in the front. Direct-Feel for more precise driver feedback.
Tension rods control caster, anti-dive, and anti-lift in the front suspension. Caster helps determine camber gain over the suspension stroke and steering axis inclination. Caster also helps auto turn the wheel when counter-steering. The angle of the tension rod (vertical plane, front to back) also helps determine anti-dive under braking situations, and anti-lift on acceleration.
Tip: If you are using your tension rods to adjust caster more than one or two degree(s) past factory settings, there will be bind in the lower control arms traditional rubber or urethane bushing. It is recommended that you change to an aftermarket control arm with a heim joint.
Sub Frame Support Bar
Megan Racing Rear Lower Support Bar is an adjustable steel bar and is installed on the rear lower suspension. The tension on this rod can be adjusted which will allow for more rigidity in the rear lower suspension.It comes with all the necessary hardware for installation and bolts. Basic tools needed for installation
- Material: Steel Alloy
- Color: Blue
- Finish: Powdercoated
- Type: Control Arms
- Style: Sub Frame Support Bar
- Placement: Rear Lower (Sub Frame Support)
- Constructed of High-Strength Steel Alloy
- Improves Rear Suspension, Handling, Predictable Response and even Prevents Premature Tire Wearing
- Designed to Withstand Tough Road Condition, Big Save on Alignment Every Time after Hitting a Bump
- Measurement:
Minimum Arm Length: 16-7/8″
Maximum Arm Length: 18-3/8″
Thread Engagement for Maximum Arm Length is a minimum of 5/8″
Application:
U.S Models:
For 1997-2001 Infiniti Q45 (Y33)
For 1989-1994 Nissan 240SX (S13)
For 1995-1998 Nissan 240SX (S14)
Non U.S Models:
For 1999-2002 Nissan 200SX Silvia (S15)
Remark: For Non-HICAS Models ONLY
Installation:
Product Content:
- 1 x Tension Rods Support Bar MRS-NS-1791
1 x Sub Frame Support Bar MRS-NS-1793
The product does not come with manual/instruction, Professional Install Recommended
Cross Reference Number:
- MRS-NS-1791, MRS-NS-1793, MRSNS1791, MRSNS1793
