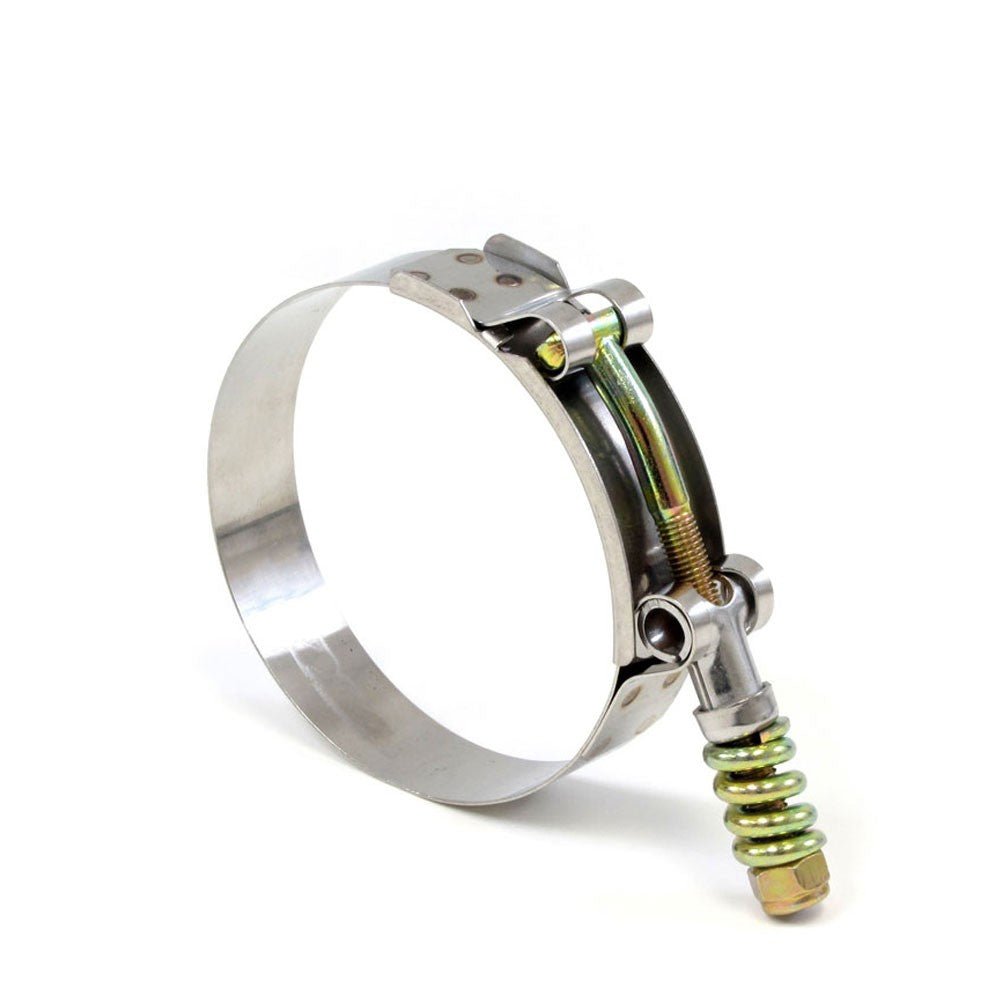

1x HPS Stainless Steel Spring Loaded T-Bolt Clamp 6.5″-6.81″ (165mm-173mm)

Buying the HPS Stainless Steel Spring Loaded T-Bolt Clamp 6.5″-6.81″ (165mm-173mm) should be simple, so here are the facts without the marketing noise.

Inner diameter must match the fitting exactly, since eyeballing sizes is how leaks begin. Measure inner diameter at the fitting rather than estimating by eye.

Our team knows the hps stainless steel spring loaded well, so ask if anything about the specification is unclear.

Stock of the hps stainless steel spring loaded is live on this page rather than estimated.

The important numbers

• Material: Stainless Steel
• Category: Clamps
• Price: $22.50 with free shipping over $99
• Availability: in stock, dispatched from the USA

Manufacturer specifications

HPS Stainless Steel Spring Loaded T-Bolt Clamp 6.5″-6.81″ (165mm-173mm) provides high strength and a 360 degree seal. The added spring is there to automatically adjusts the clamp diameter to compensate for the expansion and contraction of hose when temperatures or the pressure fluctuate. HPS spring loaded clamps are reusable. Design to meet or exceeds SAE Spec. J1508 for T-bolt clamps. The clamps has a floating bridge and rolled edges to protect soft hose. The lock nut has a nylon insert to prevent it from backing out. Tighten with a 7/16 inch socket wrench.

The HPS constant tension t bolt clamps are widely used in the charge air cooler system (cac), aircraft, automotive, truck and heavy-duty vehicle, industrial, hardware/plumbing, and marine industries. Technical Specification: SAE #180. Effective Size Range: 6.5″-6.81″ (165mm-173mm). Superior welded construction. Floating bridge and rolled edges to protect soft hoses. 3/4 inch wide 300 Series Stainless Steel Band and Trunnion. Zinc Plated T-bolt, Nut and Springs. 7/16 inch head Nylon Nut. Meets or exceeds SAE Spec. J1508 for T-Bolt clamps. Max. Torque Spec: 75 in. lbs.. Quantity: 1

• SAE #180. Effective Diameter Range: 6.5″-6.81″ (165mm-173mm).
• 3/4″ wide 300 Series Stainless Steel Band and Trunnion
• Zinc Plated T-bolt, Nut and Springs
• Nominal Diameter: 6-3/4″.Max. Torque Spec: 75 in. lbs.
• Meets or exceeds SAE Standard, ideal for charge air cooler system (cac), aircraft, automotive, truck and heavy-duty vehicle, industrial, hardware/plumbing, and marine industries.

Application:

Universal Fit Product

Remark:

Installation: The size listed indicates the minimum and maximum inside diameter of the clamp. Please order clamp according to the OUTSIDE DIAMETER of the hose!

Product Content:

• 1 x Spring Loaded T-bolt Clamp

The product does not come with manual/instruction, Professional Install Recommended

Cross Reference Number:

• SLTC-650, SLTC-650, SLTC650

Ask before you order and the only surprise on installation day is how smoothly it goes.
