HPS Red/Black Intercooler Charge Pipe Cold Side / Hold Side For 03-07 Ford F-Series Super Duty 6.0L Diesel PHN131

This page lists the HPS Red/Black Intercooler Charge Pipe Cold Side / Hold Side For 03-07 Ford F-Series Super Duty 6.0L Diesel PHN131, including what it fits and what we check before dispatch.

Cooling components hold operating temperature inside a narrow window that protects the entire engine. Bleed the air out thoroughly, since trapped air mimics a failing component.

The hold side for 03-07 ford f-series super listed here is checked against your vehicle before dispatch.

Every hold side for 03-07 ford f-series super order goes through the same fitment review.

Ordering the hold side for 03-07 ford f-series super takes a minute and the confirmation reaches you straight away.

Our team knows the hold side for 03-07 ford f-series super well, so ask if anything about the specification is unclear.

Stock of the hold side for 03-07 ford f-series super is live on this page rather than estimated.

Shops order the hold side for 03-07 ford f-series super from us in volume because the data on the page is accurate.

If your build is unusual, tell us and we will confirm the hold side for 03-07 ford f-series super against it.

Drivers choose the hold side for 03-07 ford f-series super here for honest specification detail and quick dispatch.

Buyers comparing the hold side for 03-07 ford f-series super will find the specification detail on this page rather than in a catalog footnote.

Part details

• Engine: 6.0L
• Finish: Black
• Category: Cooling Systems
• Price: $600.67 with free shipping over $99
• Availability: in stock, dispatched from the USA

Manufacturer specifications

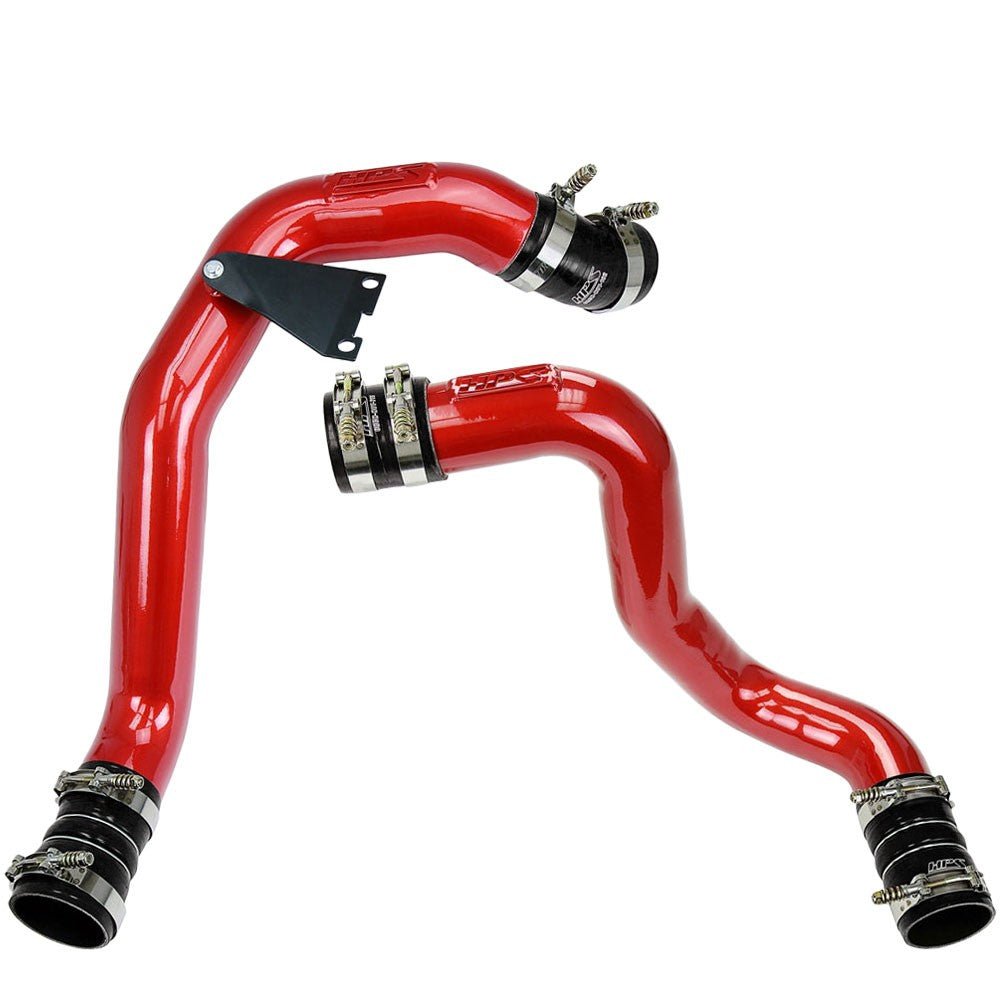

This HPS Hot and Cold Side Charge Pipe Kit addresses some of the most common issues that owners eventually come across on their 6.0L Powerstroke. From cracked pipes to worn out boots, HPS has the solution to keep your truck up and running regardless of how harsh the operation conditions are, even the hottest days.

The factory hot side pipe is notorious for failing at the boots as it sits in the engine bay without any reinforcements to hold it in place. This puts a lot of stress on the boots and often leads to premature failure. A custom brace is included in the kit to help mount it in place and take the pressure off of the connecting points. This kit also addresses the weak and brittle plastic cold side charge pipe that some of these 6.0L Powerstroke vehicles came with.

Additionally, HPS has also engineered these pipes using mandrel-bent 6061-grade aluminum tubing to reduce weight by approximately 50%. This upgraded piping, on both hot and cold sides, also boasts performance gains as the smoother pathway improves air flow, allowing better throttle response and faster acceleration for better drivability.

The stock intercooler boots are made of silicone and are reinforced with just two layers of polyester. Because the 6.0L Powerstroke engines breathe a lot of oil through the turbo, these stock parts will degrade, become soft, and eventually rip or blow through. The custom boots in this kit are designed with 4-plies of high-temperature, high-pressure, and oil-resistant silicone material that will withstand the constant flow of oil without compromising their integrity.

Held in place using HPS Stainless Steel Spring-Loaded T-bolt Clamps, fluctuations in temperature do not require maintenance as they provide constant tension to accommodate for these changes. Crafted to resist corrosion, these clamps will stand up against the elements with ease.

• Material: Mandrel-Bent Aluminum
• Color: Red / Black
• Improves acceleration and throttle response for a better driving experience.
• Upgraded replacement product for the inferior hot and cold side factory steel and plastic charge pipes. Does NOT require retuning or any additional modifications.
• Custom engineered mounting brace for the hot side pipe that adds structural rigidity.
• Ultra high-temperature, high-pressure-resistant, oil-resistant 4-ply aramid-reinforced silicone couplers for excellent durability against the harshest operating conditions.
• Includes industrial-grade, spring-loaded T-bolt clamps that provide constant tension and eliminate the need for maintenance in fluctuating temperature conditions.
• Replaces OEM PN: 3C34-6C640-CA, 3C34-6C640-DA, 3C34-6K769-AB, 3C3Z-6K769-CA, 5C34-6C646-AH, 5C34-6K769-AA, 6C34-6C640-AA, 6C34-6C640-BA, 6C34-6C640-CA, 6C34-6C646-AF, 6C3Z-6C640-A, 6C3Z-6C640-AA, 6C3Z-6C640-B, 6C3Z-6C640-C, 6C3Z-6C646-A, 6C3Z-6C646-BA, 6C3Z-6K769-B

Application:

For 2003-2007 Ford F-250 Super Duty Powerstroke 6.0L Diesel Turbo (PHN131 1st Gen)
For 2003-2007 Ford F-350 Super Duty Powerstroke 6.0L Diesel Turbo (PHN131 1st Gen)
For 2003-2007 Ford F-450 Super Duty Powerstroke 6.0L Diesel Turbo (PHN131 1st Gen)
For 2003-2007 Ford F-550 Super Duty Powerstroke 6.0L Diesel Turbo (PHN131 1st Gen)

Remark:

Installation:

Product Content:

• 1 Set x Intercooler Charge Pipe Kit (Cold & Hot Side)
  Hardware (Bolts/Hose/Bracket) If Any is Shown in the Picture Above

Included instruction (Online Version) with pictures/description to guide the installer throughout the whole process.

Cross Reference Number:

• 17-145R, 3C34-6C640-CA, 3C34-6C640-DA, 3C34-6K769-AB, 3C3Z-6K769-CA, 6C34-6C640-CA, 6C34-6C646-AF, 6C3Z-6C640-A, 6C3Z-6C640-AA, 6C3Z-6C640-B, 6C3Z-6C640-C, 6C3Z-6C646-A, 6C3Z-6C646-BA, 6C3Z-6K769-B, 5C34-6C646-AH, 5C34-6K769-AA, 6C34-6C640-AA, 6C34-6C640-BA

If your vehicle has been modified, tell us, since the factory data will not show a previous owner changes.
